Production Details
Steel or aluminum profile KBK lifting system has changed the understanding of the traditional industrial field of the crane. The crane design is lightweight, convenient assembly, and ergonomic, which brings revolutionary improvement in the working efficiency and is a more cost-effective choice for the industrial field.Series of KBK flexible modular suspension crane system
Series of KBK flexible modular suspension crane system contains KBK – D type monorail, KBK – LD type single girder, KBK – LS double girder, KBK – DZX the pillar mounted column jib crane, KBK – BZX wall-mounted type crane, KBK – MD single-girder gantry crane, KBK – MS double girder gantry crane, KBK – DT stacking crane, KBK – JS machinery and so on all kinds of lifting equipment, lifting weight 0.5 t – 5 tons, have wide use range, especially suitable for modern production conveyor line.KBK-D flexible modular monorail conveyor
KBK-D flexible modular monorail conveyor, the use of standard components, according to the user provided logistics transmission, distribution, requirements, can be combined out of a ring, bifurcation, network and other monorail conveyor line, used to meet the needs of material transport. KBK-D flexible modular monorail transmission line can supply power to the whole line. Each trolley can be electrically driven on its own, rather than by a centralized power station. In this way, the freedom of a single trolley is greater, and can transport materials in both directions. Due to the absence of centralized power station and traction chain tension constraints, flexible modular monorail transmission line is not limited by the length. If the standard track and the quick joint are docked, the untransportable materials can be transferred between two flexible combined monorails in different places. The flexible modular monorail conveyor trolley deliver capacity can up to 2000Kg.
KBK-LD type flexible modular single girder suspension crane
KBK-LD type flexible modular single girder suspension crane is composed of standard linear track and other auxiliary standard parts. The trolley travelling part at both ends of the main beam can be run on two tracks perpendicular to the direction of the main beam, the single beam can be used with each type of fixed chain hoist, the special KBK driving device can drive the hoist to run along the direction of the main beam. This kind of product is used for plane material transportation and can be used in workshop or warehouse. Due to its special flexibility and degree of freedom, the flexible modular single-beam suspension crane can be inclined to run on the track, it can also walk on the track with variable span, and it can also run on two concentric circular curved tracks which is not possible for other kinds of lifting products. The maximum span of flexible composite single-beam suspension crane is 10 meters and the maximum lifting capacity is 2500Kg.
KBK-LS type flexible modular double girder suspension crane
KBK-LS type flexible modular double girder suspension crane is composed of standard linear track and other auxiliary standard parts. The trolley travelling part at both ends of the main beam can be run on two tracks perpendicular to the direction of the main beam, the single beam can be used with each type of fixed chain hoist, the special KBK driving device can drive the hoist to run along the direction of the main beam. This kind of product is used for plane material transportation and can be used in workshop or warehouse. The flexible modular double girder suspension crane is used to lift heavy materials with large span due to the use of double-rail parallel composite beam to increase the load-bearing capacity of the main beam.KBK-DT stacking crane
KBK-DT stacking crane is composed of 4S standard components, double girder suspension crane and a special stacker. Suitable for the transport, storage and access of unit cargo and pallet etc. Easy to operate, can greatly improve efficiency. The stacker can rotate 360°, and can be lifted by YY type electric chain hoist, with the maximum lifting capacity up to 500Kg.Production Features
KBK light load overhead crane VS traditional overhead crane
-
- Reduce plant cost: The equipment does not need the help of the plant corbel, in the design of the plant, you can minimize the bearing capacity of the plant column design to greatly reduce the cost of the plant.
-
- No need to change the plant structure: for the existing plant, it can be added at any time according to the production needs, without any modification to the original structure of the plant.
-
- Less idle equipment: The carrying space can be covered according to the needs, and accurate shooting can be conducted to minimize idle waste of equipment.
-
- Modular design: it can be increased or decreased according to the changing production needs. It is easy to remove and move quickly without affecting the normal use of cranes in other areas.
-
- More accurate positioning: light and small structure, easy operation, accurate positioning
-
- More energy-saving and environmental-friendly: small power, low energy consumption, more energy saving and environmental protection.
-
- Low operating noise: simple structure, low failure rate, greatly reduce the scope of equipment failure.
-
- High comprehensive benefit: the track system is maintenance-free, the electric components are maintained conveniently and the cost is low. Reduce the time and labor cost caused by equipment failure, with high comprehensive benefit.

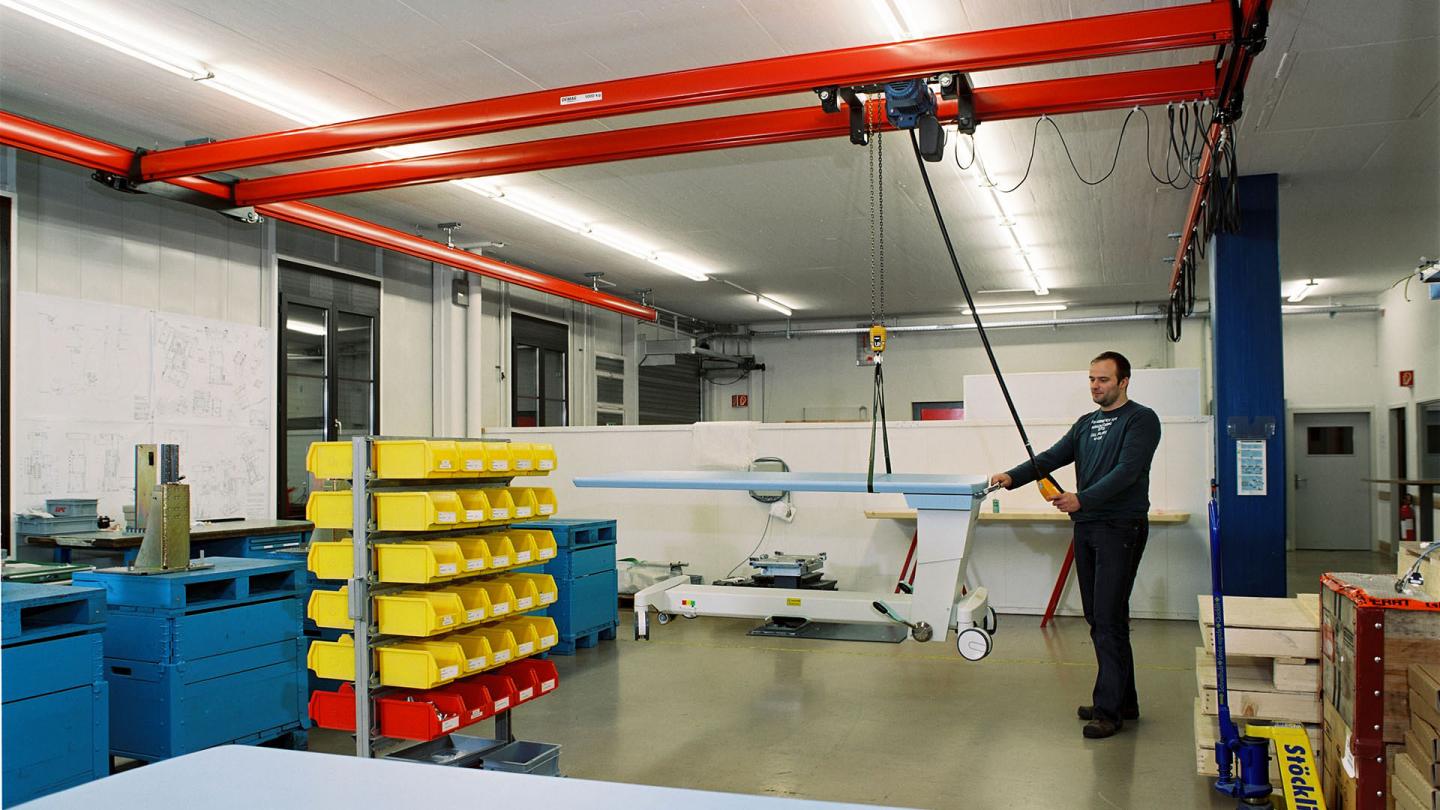

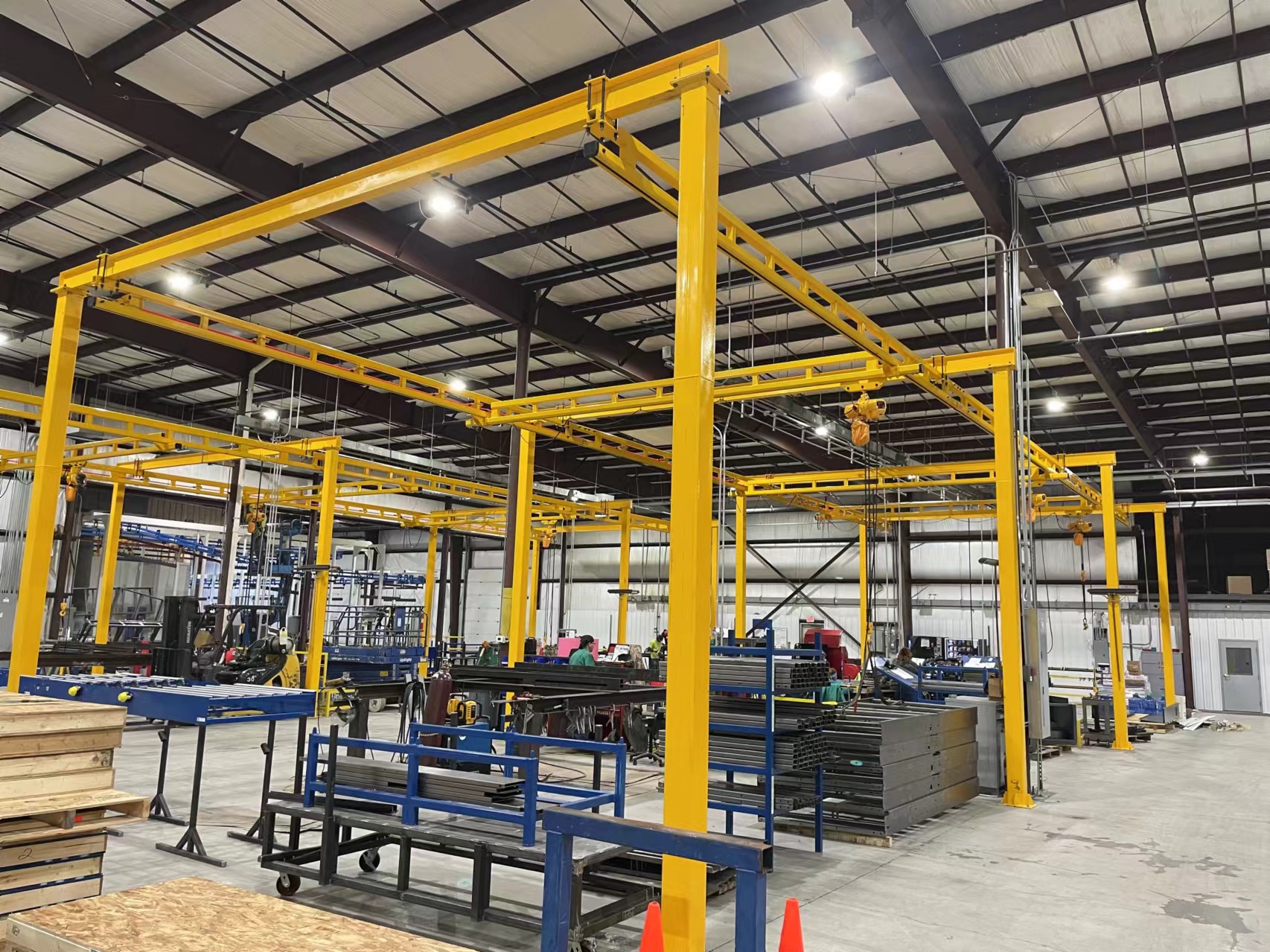

FREESTANDING WORKSTATION OVERHEAD BRIDGE CRANES
Widely used in factory, warehouse, etc. √ Span Length: 1~9 m. √ Lifting Capacity: 50~3000kg-
- Type:KBK
-
- Lifting Capacity:50-3000kg
-
- Lifting Height:according your requirements
-
- Span:1-9m
-
- Working Duty:A3
-
- Ambient Temperature:-20~40℃
Production Details
Steel or aluminum profile KBK lifting system has changed the understanding of the traditional industrial field of the crane. The crane design is lightweight, convenient assembly, and ergonomic, which brings revolutionary improvement in the working efficiency and is a more cost-effective choice for the industrial field.Series of KBK flexible modular suspension crane system
Series of KBK flexible modular suspension crane system contains KBK – D type monorail, KBK – LD type single girder, KBK – LS double girder, KBK – DZX the pillar mounted column jib crane, KBK – BZX wall-mounted type crane, KBK – MD single-girder gantry crane, KBK – MS double girder gantry crane, KBK – DT stacking crane, KBK – JS machinery and so on all kinds of lifting equipment, lifting weight 0.5 t – 5 tons, have wide use range, especially suitable for modern production conveyor line.KBK-D flexible modular monorail conveyor
KBK-D flexible modular monorail conveyor, the use of standard components, according to the user provided logistics transmission, distribution, requirements, can be combined out of a ring, bifurcation, network and other monorail conveyor line, used to meet the needs of material transport. KBK-D flexible modular monorail transmission line can supply power to the whole line. Each trolley can be electrically driven on its own, rather than by a centralized power station. In this way, the freedom of a single trolley is greater, and can transport materials in both directions. Due to the absence of centralized power station and traction chain tension constraints, flexible modular monorail transmission line is not limited by the length. If the standard track and the quick joint are docked, the untransportable materials can be transferred between two flexible combined monorails in different places. The flexible modular monorail conveyor trolley deliver capacity can up to 2000Kg.KBK-LD type flexible modular single girder suspension crane
KBK-LD type flexible modular single girder suspension crane is composed of standard linear track and other auxiliary standard parts. The trolley travelling part at both ends of the main beam can be run on two tracks perpendicular to the direction of the main beam, the single beam can be used with each type of fixed chain hoist, the special KBK driving device can drive the hoist to run along the direction of the main beam. This kind of product is used for plane material transportation and can be used in workshop or warehouse. Due to its special flexibility and degree of freedom, the flexible modular single-beam suspension crane can be inclined to run on the track, it can also walk on the track with variable span, and it can also run on two concentric circular curved tracks which is not possible for other kinds of lifting products. The maximum span of flexible composite single-beam suspension crane is 10 meters and the maximum lifting capacity is 2500Kg.KBK-LS type flexible modular double girder suspension crane
KBK-LS type flexible modular double girder suspension crane is composed of standard linear track and other auxiliary standard parts. The trolley travelling part at both ends of the main beam can be run on two tracks perpendicular to the direction of the main beam, the single beam can be used with each type of fixed chain hoist, the special KBK driving device can drive the hoist to run along the direction of the main beam. This kind of product is used for plane material transportation and can be used in workshop or warehouse. The flexible modular double girder suspension crane is used to lift heavy materials with large span due to the use of double-rail parallel composite beam to increase the load-bearing capacity of the main beam.KBK-DT stacking crane
KBK-DT stacking crane is composed of 4S standard components, double girder suspension crane and a special stacker. Suitable for the transport, storage and access of unit cargo and pallet etc. Easy to operate, can greatly improve efficiency. The stacker can rotate 360°, and can be lifted by YY type electric chain hoist, with the maximum lifting capacity up to 500Kg.Production Features
KBK light load overhead crane VS traditional overhead crane
-
- Reduce plant cost: The equipment does not need the help of the plant corbel, in the design of the plant, you can minimize the bearing capacity of the plant column design to greatly reduce the cost of the plant.
-
- No need to change the plant structure: for the existing plant, it can be added at any time according to the production needs, without any modification to the original structure of the plant.
-
- Less idle equipment: The carrying space can be covered according to the needs, and accurate shooting can be conducted to minimize idle waste of equipment.
-
- Modular design: it can be increased or decreased according to the changing production needs. It is easy to remove and move quickly without affecting the normal use of cranes in other areas.
-
- More accurate positioning: light and small structure, easy operation, accurate positioning
-
- More energy-saving and environmental-friendly: small power, low energy consumption, more energy saving and environmental protection.
-
- Low operating noise: simple structure, low failure rate, greatly reduce the scope of equipment failure.
-
- High comprehensive benefit: the track system is maintenance-free, the electric components are maintained conveniently and the cost is low. Reduce the time and labor cost caused by equipment failure, with high comprehensive benefit.
